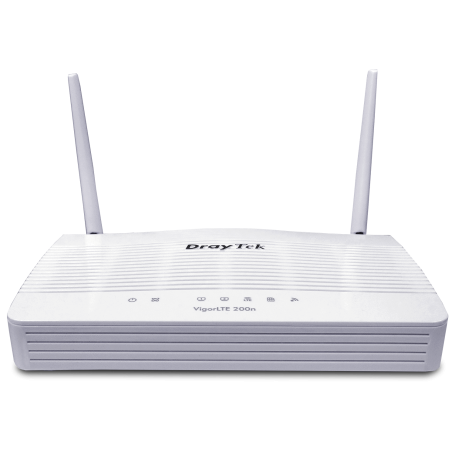

ROUTER DRAYTEK DT-VLTE200n Wi-Fi 2Gb-LAN 4G/LTE
Descrição
Performance |
|
| NAT Session | 30K |
| Max. NAT (Mbps) | 300 |
WAN |
|
| Ethernet (GbE) | 1 |
|
Ethernet - LAN/WAN Switchable
|
|
| Cellular (Built-in) | 4G |
3G |
|
| WCDMA (3G) Band | 1, 8 |
4G LTE |
|
| LTE Category (Up to) | CAT.4 |
| LTE Antenna (External Dipole) | 2 |
| LTE Antenna Peak Gain (dBi) | 3 |
| SIM Slot | 2 |
| Max. Rx Link Rate (Mbps) | 150 |
| Max. Tx Link Rate (Mbps) | 50 |
| FDD Band | 1(2100MHz), 3(1800MHz), 7(2600MHz), 8(900MHz), 20(800MHz) |
| SMS Gateway | Learn More |
Internet Connection |
|
| IPv4 |
PPPoE
DHCP
Static IP
|
| IPv6 |
PPP
DHCPv6
Static IPv6
TSPC
AICCU
6rd
6in4 Static Tunnel
|
| LTE WAN Bridge | |
| 802.1p/q Multi-VLAN Tagging | |
| Multi-VLAN/PVC | |
| Failover | |
| Connection Detection | ARP, Ping |
| WAN Data Budget | |
| Dynamic DNS | |
| DrayDDNS | |
LAN |
|
| Fixed LAN (RJ-45, GbE) | 1 |
| LAN Subnet | 2 |
| VLAN |
802.1q Tag-based VLAN
Port-based VLAN
|
| Max. Number of VLAN | 8 |
| DHCP Server |
Multiple IP Subnet
Custom DHCP Options
Bind-IP-to-MAC
|
Networking |
|
| Routing |
IPv4 Static Route
IPv6 Static Route
Inter-VLAN Route
RIP v1/v2
BGP
|
| IGMP |
IGMP v2/v3
IGMP Proxy
IGMP Snooping & Fast Leave
|
VPN |
|
| LAN-to-LAN | |
| Teleworker-to-LAN | |
| Protocols |
PPTP
L2TP
IPsec
L2TP over IPsec
SSL
IKEv2
IPsec-XAuth
OpenVPN(Host to LAN)
|
| Max. VPN Tunnels | 2 |
| Max. OpenVPN + SSL VPN Tunnels | 2 |
| IPsec VPN Throughput (AES 256 bits) (single-directional) (Mbps) | 55 |
| SSL VPN Throughput (single-directional) (Mbps) | 25 |
| User Authentication |
Local
RADIUS
mOTP
|
| IKE Authentication | Pre-Shared Key, X.509 |
| IPsec Authentication | SHA-1, SHA-256, MD5 |
| Encryption |
MPPE
DES
3DES
AES
|
| NAT-Traversal (NAT-T) | |
| VPN Matcher | |
Firewall & Content Filtering |
|
| NAT |
Port Redirection
Open Ports
DMZ Host
UPnP
|
| ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323 |
| VPN Pass-Through | PPTP, L2TP, IPsec |
| IP-based Firewall Policy | |
| Content Filtering |
APP
URL Keyword
DNS Keyword
Web Features
Web Category*(*subscription required)
|
| DoS Attack Defense | |
| Spoofing Defense | |
Bandwidth Management |
|
| IP-based Bandwidth Limit | |
| IP-based Session Limit | |
| QoS (Quality of Service) |
TOS
DSCP
802.1p
IP Address
Port
|
| VoIP Prioritization | |
WLAN |
|
| 2.4GHz WLAN | 802.11n 2x2 MIMO |
| Antennas | 2 |
| Antenna Type | Internal PIFA |
| 2.4GHz Antenna Gain (dBi) | 2 |
| 2.4GHz Max. Link Rate (Mbps) | 300 |
| Max. Number of SSIDs per band | 4 |
| Security Mode |
WEP
WPA
WPA2
Mixed(WPA+WPA2)
|
| Authentication | Pre-Shared Key, 802.1X |
| WPS | PIN, PBC |
| WDS | Bridge, Repeater |
| Access Control |
Access List
Client Isolation
Hide SSID
WLAN Scheduling
|
| WMM | |
Management |
|
| Local Service |
HTTP
HTTPS
Telnet
SSH v2
FTP
TR-069
|
| Config Backup/Restore | |
| Firmware Upgrade | TFTP, HTTP, TR-069 |
| Access Control | Access List, Brute Force Protection |
| Notification Alert | SMS, E-mail |
| SNMP | v1, v2c, v3 |
| Syslog | |
| AP Managment | 2 |
| VigorACS (Since f/w) | V3.8.14 |
Physical |
|
| Power Input | DC 12V @ 1A |
| Max. Power Consumption (watts) | 12 |
| Dimension (mm) | 207 x 131 x 42 |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
