ROUTER DRAYTEK DT-V2962 Multi-WAN
Descrição
High Performance 2.5G Router
Vigor2962 is a high performance and dynamic firewall router with configurable WAN/LAN ports. With the selection of 2.5GbE port, 1GbE Fiber port, and 2 of 1GbE ports, users can set 4 of the ports as WAN for load balancing/failover purpose and enjoy overall 2.2Gbps NAT throughput.
Up to 4 WANs
including 2.5G Ethernet and SFP
200 VPN
IPsec VPN throughput up to 1 Gbps
2.2 Gbps
Max. NAT Throughput
300k Sessions
Recommended for a network of 250 hosts

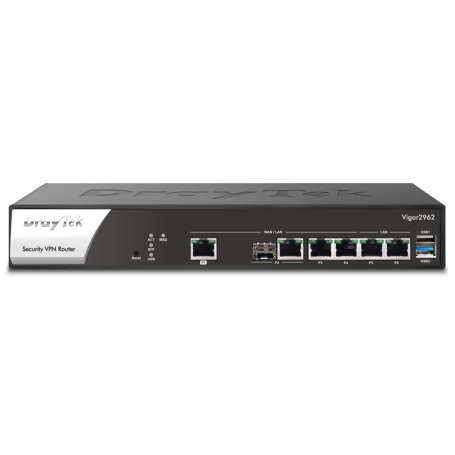

1Power Input
2Power On/Off Switch
3Reset Button
4LED Indicator
51x 2.5G RJ-45
61x GbE/SFP Combo*
72x GbE RJ-45
8Fixed LAN Port: 2x GbE RJ-45
91x USB 2.0 & 1x USB 3.0
Key Features
Load Balancing
Maximize throughput and reliability by using multiple Internet connections. Learn more
VPN (Virtual Private Network)
Build a secure and private tunnel from the LAN of Vigor2962 to the remote offices and teleworkers over the Internet. Learn more
SSL VPN
The VPN works through firewalls providing secure remote access to any network environment. Learn more
VPN Matcher
Helps routers behind NAT to find each other and establish a LAN-to-LAN VPN. Learn more
PPPoE Server
Use Point-to-Point connection on LAN to keep track of individual user's traffic. Setup Guide
Hotspot Web Portal
Market your business and communicate with the guests while offering hospitality WLAN. Learn more
Bandwidth Management
Prevent one device using all the bandwidth by bandwidth limit policy, session limit policy, and QoS settings.
Firewall & Content Filter
Filter web pages by URL keyword or web category to block access to insecure or inappropriate contents.
DrayDDNS
The free DDNS service for you to access the router by a fixed hostname of your choice. Learn more
Central AP Management
Use the Vigor2962 router as a wireless controller to maintain and monitor the VigorAPs. Learn more
Central Switch Management
Set up VLAN easily from the router and get a centralized hierarchy view of the switches. Learn more
Flexible WAN/LAN Ports
Vigor2962 features four configurable WAN/LAN ports, including one 2.5GbE port, one SFP/GbE combo port, and two GbE ports. Up to four ports can be used as WAN port concurrently. Multi-WAN for load balancing/failover improves Internet resilience of your business.
Advanced VPN Features
VPN 2FA on AD/LDAP Server
With new Two-Factor authentication, you can strength the security of VPN connections and eliminates the expense of SMS messages or license fees in a cost-effective way.
Packet Capture Tool for VPN tunnel
By either mirroring all packets to designated LAN port and now to VPN connection no matter LAN to LAN profile or remote Dial-in users, and even downloading .pcap file via WUI remotely, spotting an issue is easier than ever.
VPN from LAN (Zero Trust)
Never trust, always verify. VPN from LAN works Zero Trust out. It provides a better security level to your network, which protects vital servers from potential threats caused by other LAN devices. The servers can only be accessed by VPN, even if the devices are on the LAN network.
VPN User Isolation
Isolating remote dial-in accounts to protect VPN users from each others. They can only access company’s servers but not allowed to enter each other’s devices. This helps prevent unauthorized access to sensitive data and protect network from malware or other intrusions.
VPN 2FA on AD/LDAP Server
With new Two-Factor authentication, you can strength the security of VPN connections and eliminates the expense of SMS messages or license fees in a cost-effective way.
Packet Capture Tool for VPN tunnel
By either mirroring all packets to designated LAN port and now to VPN connection no matter LAN to LAN profile or remote Dial-in users, and even downloading .pcap file via WUI remotely, spotting an issue is easier than ever.
VPN from LAN (Zero Trust)
Never trust, always verify. VPN from LAN works Zero Trust out. It provides a better security level to your network, which protects vital servers from potential threats caused by other LAN devices. The servers can only be accessed by VPN, even if the devices are on the LAN network.
VPN User Isolation
Isolating remote dial-in accounts to protect VPN users from each others. They can only access company’s servers but not allowed to enter each other’s devices. This helps prevent unauthorized access to sensitive data and protect network from malware or other intrusions.
Server Load Balancing
Hosting multiple servers to share the traffic load for the same service is common. It can avoid excessive load on a single server by distributing the load, optimizing resource usage, and preventing a single server failure.
With Server Load Balance, when massive connections enter the router, the router will distribute the inbound NAT sessions among the servers with the configured load balance weight.
Port Knocking
Configuring NAT Port Redirection rules is the typical way to allow the internal servers to be accessible from the Internet. However, once the port opens, it is exposed to the Internet and can be scanned by the malware.
Port knocking is a technology that can add an extra layer of protection to the internal servers. Its basic idea is that only open ports are at risk of being attacked, so it allows all ports to be closed at the beginning. Do not open them, and then set a password based on the port combination. Only those who know the password can open the ports and connect.
Hotspot Web Portal
Market your business while offering free WLAN
WLAN Marketing
Redirect the hotspot guests to the company homepage, online surveys, or display promotion message.
Grow Your Email List
Require the guest to leave contact info or social media accounts before they can use the Internet service.
Various Authentication Type
A variety of login methods are supported to meet your business need, including Facebook Login, Google Login, SMS PIN, Voucher PIN, and RADIUS.
3rd-Party Service Compliant
Supports external captive portal authentication. You can keep using the WLAN marketing solution you like.
Quota Management
Bandwidth management is integrated into Hotspot to control the bandwidth and session usage of the Hotspot guests.
All-in-One Management
A management platform for Vigor devices on the LAN side and offer simple and massive deployment.
Automatic Device Discovery
Automatically discover LAN subnets and add detected VigorSwitch/AP into managed list.
Provisioning
Most-frequent used settings can be pre-defined on the Vigor Router, and provision to the managed VigorSwitch/AP.
Monitoring
Vigor Router provides a centralized view of managing devices, you may always check if the managed Vigor Switch/AP is online.
System Maintenance
You may perform a factory reset, save/restore a configuration backup, or trigger a remote reboot directly on the Vigor Router. There’s no need to log in to each device’s management page.
Management Solution
All-in-One Management
Vigor Router SWM
Auto-Discovery, Provisioning, Monitoring, Centralized Hierarchy View, Reboot PoE Devices Remotely, Quick VLAN Configuration
Vigor Router APM
Auto-Discovery, Provisioning, Monitoring, Centralized View, Alarm, Reboot VigorAP Remotely, Wi-Fi Client Load Balancing
