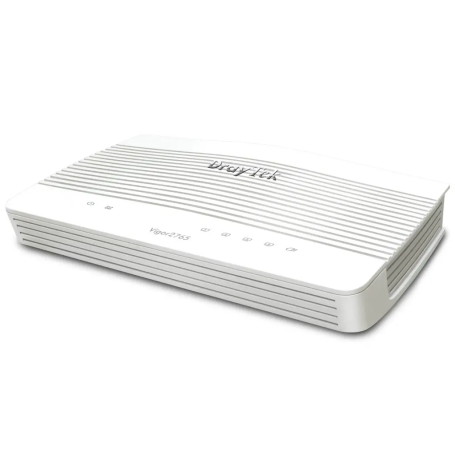

Router Draytek ADSL 2/2+, Switch Gigabit de 4 portas 10/100/1000 Ethernet e porta USB para Impressora (DT-V2765acA)
Descrição
VDSL2 35b Supervectoring Router for Professionals
Vigor2765 Series is a VDSL2 35b supervectoring modem, a firewall, and a VPN router. The router has 4x GbE LAN port, one of which is switchable to be a backup WAN interface. It's highly configurable for an abundance of features including web content filtering, bandwidth limit, QoS and lots more, perfect for professional users who would like to take full control of the network. The series includes models with built-in 11ac Wave 2 WiFi, 802.11ax WiFi, and VoIP gateway.
VDSL2 35b
Download speed up to 300 Mbps
2 VPN
IPsec throughput up to 150 Mbps
AX 3000*
Delivers link rate up to 3 Gbps
50k Sessions
Recommended for a network of 30 hosts
Interface
(Vac model)
(ax model)
1Wireless Antenna (ac/ax model)
2WLAN/WPS Button (ac/ax model)
3Reset Button
42x USB 2.0
5LAN/WAN Switchable Port: 1x GbE RJ-45
6Fixed LAN Port: 3x GbE RJ-45
71x RJ-11 for VDSL2 35b/ADSL2+
82x FXS for VoIP (V model)
LED Indicator (ax model)
9Power On/Off Switch
10Power Input
Key Features
35b Supervectoring Modem
Integrated VDSL modem, supporting VDSL2 profile 35b supervectoring.
VPN (Virtual Private Network)
Build a secure and private tunnel from the LAN of Vigor2765 Series to the remote offices and teleworkers over the Internet. Learn more
VPN Matcher
Helps routers behind NAT to find each other and establish a LAN-to-LAN VPN. Learn more
Bandwidth Management
Prevent one device using all the bandwidth by bandwidth limit policy, session limit policy, and QoS settings.
VoIP Friendly
Vigor2765 Series can do port forwarding and reserve bandwidth for VoIP traffic automatically, making VoIP setup effortless. Setup Guide
DrayDDNS
The free DDNS service for you to access the router by a fixed hostname of your choice. Learn more
Firewall & Content Filter
Filter web pages by URL keyword or web category to block access to insecure or inappropriate contents.
Hotspot Web Portal
Market your business and communicate with the guests while offering hospitality WLAN. Learn more
Central AP Management
Use the Vigor2765 Series router as a wireless controller to maintain and monitor the VigorAPs. Learn more
WiFi 6 (ax model only)
Feature OFDMA and MU-MIMO technology to improve WiFi efficiency and deliver higher wireless speed.
Mesh (Wireless model only)
Easily link to other VigorAP to expand the wireless network. Learn more
Hardware NAT & Routing with Hardware QoS
The accelerator supports up to 2k NAT and routing connections, providing firewall performance up to 940Mbps on either Ethernet or DSL WAN (G.fast), while still meeting high expectation of QoS quality.
WiFi Roaming
Solve the sticky client problem and improve WiFi roaming experience.
Proactive Roaming
WiFi clients automatically hand-off to another AP/Router with a better signal strength when moving around in an area with multiple APs/Routers.
However, WiFi clients sometimes stick to the AP/Router with weak signal, and not switching to the one with better signal.
Assisted Roaming
VigorAP will disassociate the WiFi clients who are out of the effective transmission range, forcing them to pick up another AP/Router with a stronger signal.
Stronger Signal Guaranteed
Furthermore, with "Minimum RSSI with Adjacent AP" option, VigorAP can disassociate the client only when other AP/router has a stronger wireless signal, and keep client stayed when there’s no other AP/Router nearby.
Stronger Signal Guaranteed
By using the "Minimum RSSI with Adjacent AP" option, the AP/Router on the same local subnet will exchange client information with each other, providing the choice to disassociate the client only when other AP detecting a stronger signal. Thus to keep the client stayed when there is no other AP nearby.
Hotspot Web Portal
Market your business while offering free WLAN
WLAN Marketing
Redirect the hotspot guests to the company homepage, online surveys, or display promotion message.
Grow Your Email List
Require the guest to leave contact info or social media accounts before they can use the Internet service.
Various Authentication Type
A variety of login methods are supported to meet your business need, including Facebook Login, Google Login, SMS PIN, and RADIUS.
3rd-Party Service Compliant
Supports external captive portal authentication. You can keep using the WLAN marketing solution you like.
Quota Management
Bandwidth management is integrated into Hotspot to control the bandwidth and session usage of the Hotspot guests.
Utilize Transmission Opportunity with OFDMA (ax model)
OFDMA has been used in LTE for many years, and is now available in 802.11ax for multi-user mode.
Traditionally with OFDM, each frame is transmitted across the entire channel width. With low-rate transmission still using the whole channel, it brings latency and jitter to others and lower the overall efficiency.
OFDMA splits a single transmission into groups of subcarriers, and each subcarrier can be used by different client. With multiple clients transmitting simultaneously in the same channel, it improves efficiency of every single transmission opportunity and thus increases the wireless experiences in high density environment.
OFDM
OFDMA
LAN Management
An all-in-one management platform for Vigor devices on the LAN side.
Automatic Device Discovery
Simply connect the Vigor AP to the LAN side of the router, Vigor Router will then discover the devices to be managed.
Provisioning
Basic settings may be done on the Vigor Router, and provision to the managed VigorAP.
Monitoring
Vigor Router provides a centralized view of managing devices, you may always check if the managed VigorAP is online.
System Maintenance
You may perform a factory reset, save/restore a configuration backup, or trigger a remote reboot directly on the Vigor Router. There’s no need to log in to each device’s management page.
